Portal machining center „gantry type“ with traveling portal – FSGC

FPPC

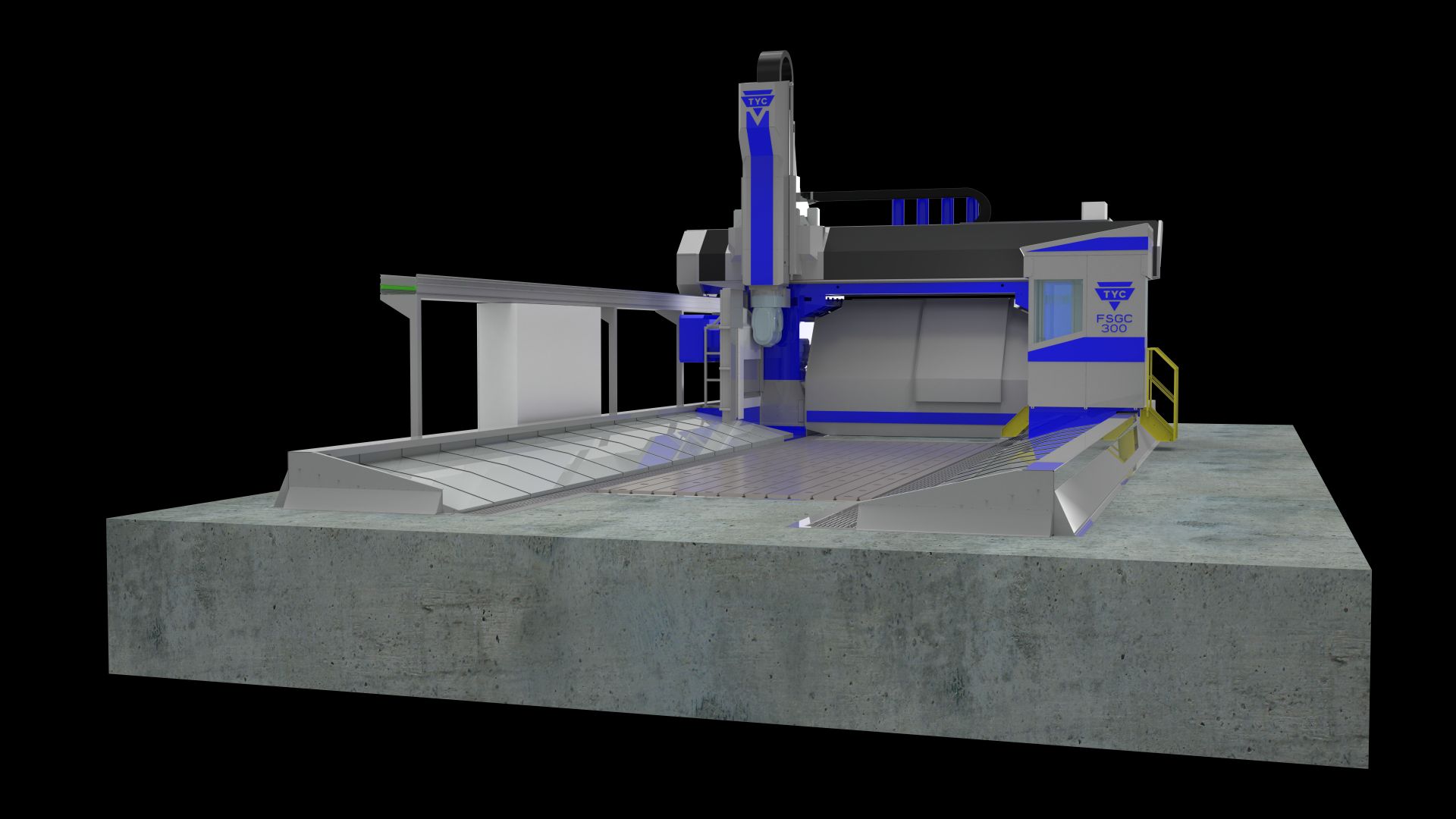

The offered FSGC machining center is a machine with portal construction. It is equipped with a moveable portal and cast iron base plates for workpiece clamping. These plates are standard suggested option of the machines FSGC. There is possible to equip the machine tool by special clamping unit instead casted plates, or combination of both.

There is possible to select from many accessories and equipments for the machine tools. Heads, automatic tool change, cooling of the tools, measuring probes and others. The accuracy is expressed by the characteristic quantities according to the standard VDI/DGQ 3441.

The modular system design of the machine allows the assembly FPPC machine in a wide range of dimensions. As the width, and particularly in length. For machining from 5 sides, the machine can be equipped with 2-axis head in design or indexing with continuous control.

Enquiry
Contact formDo you have questions or need advice from us? Contact form

Basic parametres of the machine

TYP FSGC 200 300 400 500
Stroke of X-axis mm 4 000- 50 000 4 000 – 50 000 4 000 – 50 000 4 000 – 50 000
Stroke of Y-axis mm 4 200 4 700 5 700 6 700
Stroke of Z-axis mm 1 500 (2 000) 1 500 (2 000) 1 500 (2 000) 1 500 (2 000)
Length of table mm 4 000 – 50 000 4 000 – 50 000 4 000 – 50 000 4 000 – 50 000
Width of table mm 2 500 3 000 4 000 5 000
Load of table kg/m2 5 000 5 000 5 000 5 000
Distance between columns mm 3 800 4 300 5 300 6 300
Feeds X,Y,Z mm 2 500 2 500 2 500 2 500
