Portal machining centre “TOP GANTRY TYPE” – FPPC

FPPC

The FPPC machine is the modern centre with modular construction which allows to configure all parametres in accordance to customers requirements.

Right configuration of the machine and accessories makes the machine suitable for milling, drilling or turning operation with 3 to 6 axes.

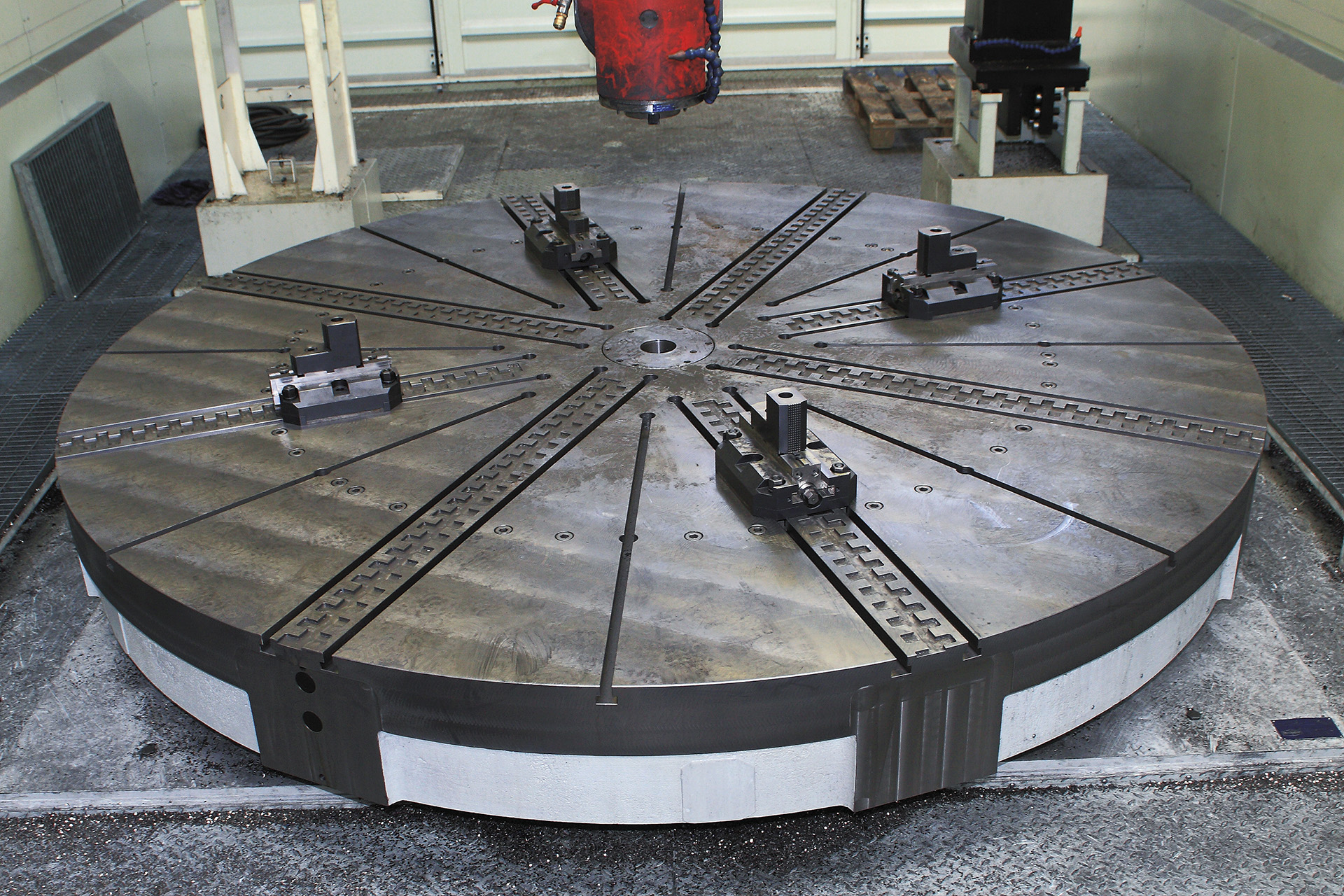

The machine is intended for machining of a big workpieces (especially long and heavy workpieces) and there can be machined small and curvy pieces as well. In addition with turning table it allows to turn rotary workpieces as on the vertical turning machine.

Modular system of FPPC allows to compile the machine in wide range of dimensions in the meaning of wideness and especially length. It is possible to equip the machine with continuous or indexed 2-axis head.

Enquiry
Contact formDo you have questions or need advice from us? Contact form

Basic parametres of the machine

TYP FPPC 200 250 300 350 400 500 600
Stroke of X-axis mm 2 500 – 50 000 2 500 – 50 000 3 200 – 50 000 3 200 – 50 000 4 000 – 50 000 6 000 – 50 000 6 000 – 50 000
Stroke of Y-axis mm 2 000 2 500 3 000 3 500 4 000 5 000 6 000
Stroke of Z-axis mm 1 500 (1 800) 1 500 (1 800) 1 500 (1 800) 1 500 (1 800) 1 500 (1 800) 1 500 (1 800) 1 500 (1 800)
Length of table mm 3 100 – 52 000 3 100 – 52 000 3 100 – 52 000 3 100 – 52 000 3 100 – 52 000 6 200 – 52 000 6 200 – 52 000
Width of table mm 2 500 2 500 3 200 3 750 3 750 4 800 5 700
Load of table kg/m2 5 000 5 000 5 000 5 000 5 000 5 000 5 000
Distance between columns mm 3 080 3 575 4 070 4 565 5 060 6 050 7 040
Feeds X,Y,Z mm/min 20 000 20 000 20 000 20 000 20 000 20 000 20 000
Max. diameter of turning table mm 2 500 2 500 3 000 3 500 4 000 5 000 6 000
Dokumenty ke staženíDocuments to download Technical specifications (PDF 3,5 MB)
